Hydraulic

Hydraulic

Hydraulic separator

HYDRA EN
Thread 1''
Stainless steel W.Nr.1.4301
Thread 5/4''
Thread 5/4''
Tube diameter 2''

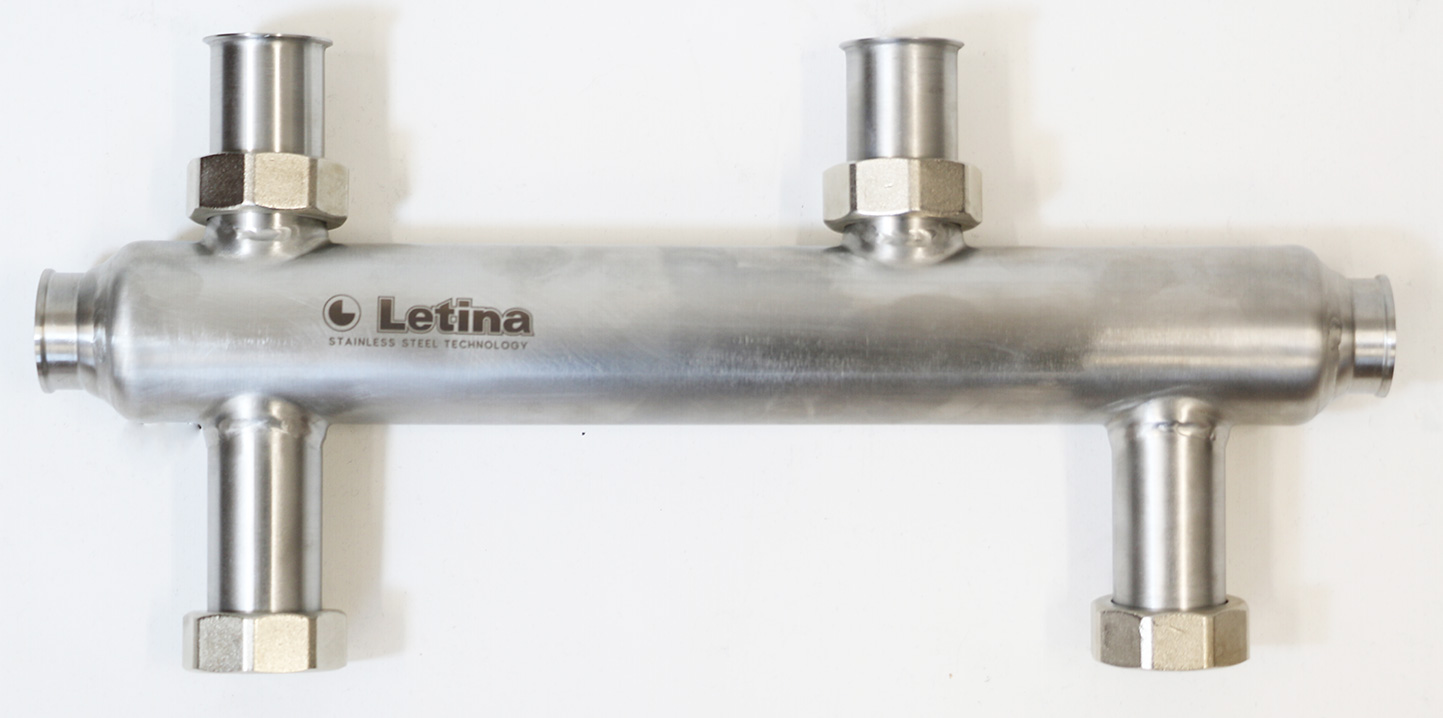

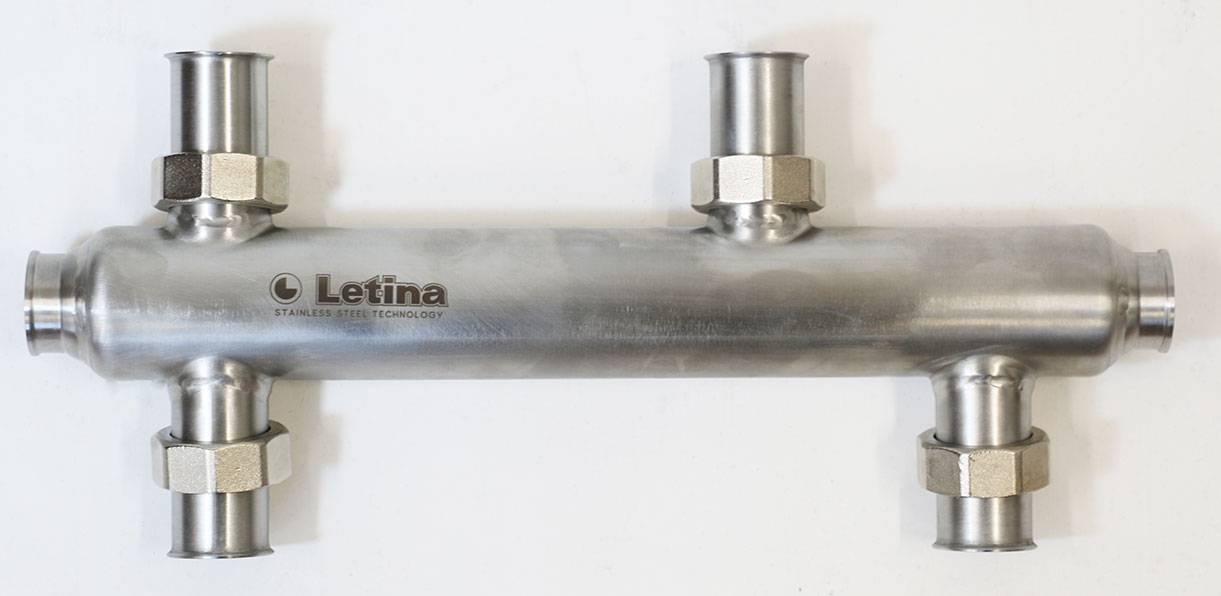

Hydraulic separator for heating and cooling systems
Letina VEM d.o.o.

Hydraulic

The hydraulic separator is a multipurpose equipment that replaces several components in the heating system, simplifying the piping and shortening the installation time. Compatible with additional equipment.

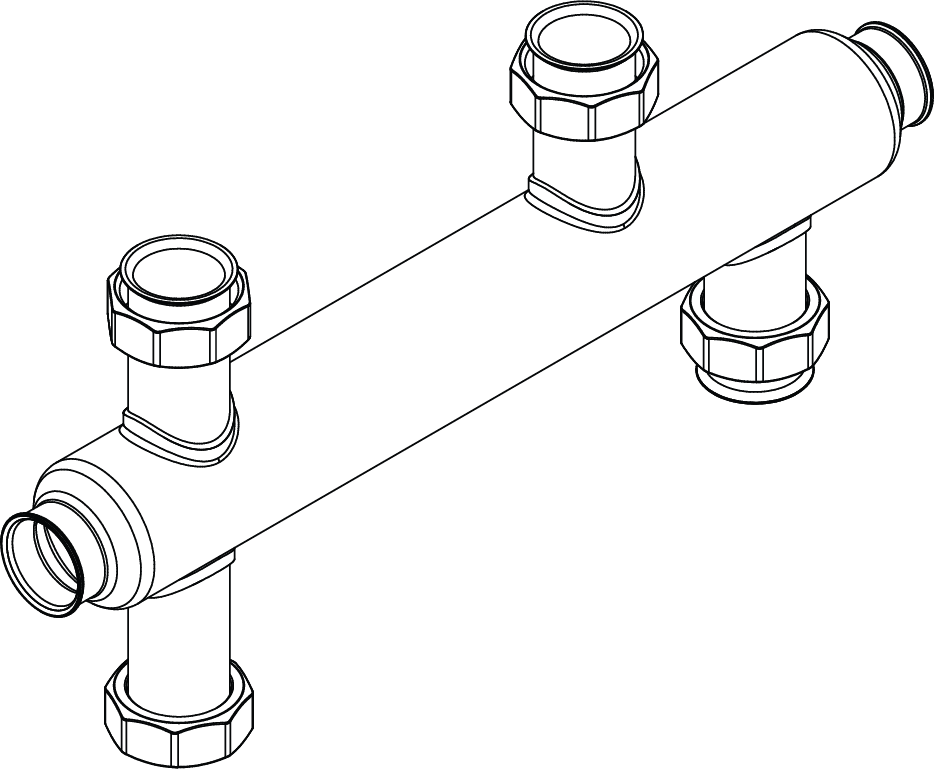

asset 1
Specifications:

• Hot water flow: up to 4 m3/h
• Max. working temperature: 85°C/90°C
• Max. working pressure: 6 bar
• Material: Stainless steel W.Nr.1.4301

Code
Product name
110163
Manifold HYDRAULIC 5/4''
